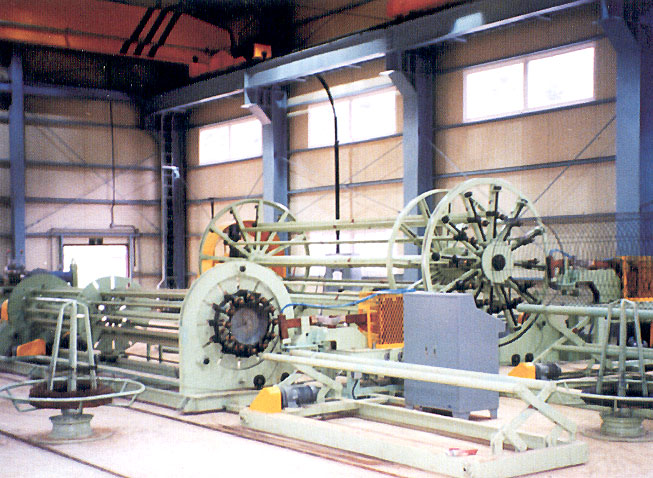

Automatic Pipe Cage Welding Machine is designed to produce cylindrical-spigot-bellend steel reinforcement cage suitable for vertical packerhead and vibratory concrete pipe making, and spun concrete pipe production. The machine consists of motor-driven mainframe, cage support, water-cooled welding power transformer, and PLC programmed control panel.

Caging Diameter

Cage Length

300~600mm dia.

2.5 ~ 5m max.

700~1500mm dia.

2.5 ~ 5m max.

1000~3000mm dia

2.5 ~ 5m max.

* Pipe Cage Welding Machine other than standard model is available upon request.

Note: Endusers are requested to provide diameter of steel wire and number of longitudinal wire for each size of pipe cage to be produced when inquiring or ordering. Water tank and compressed air supply by enduser.
