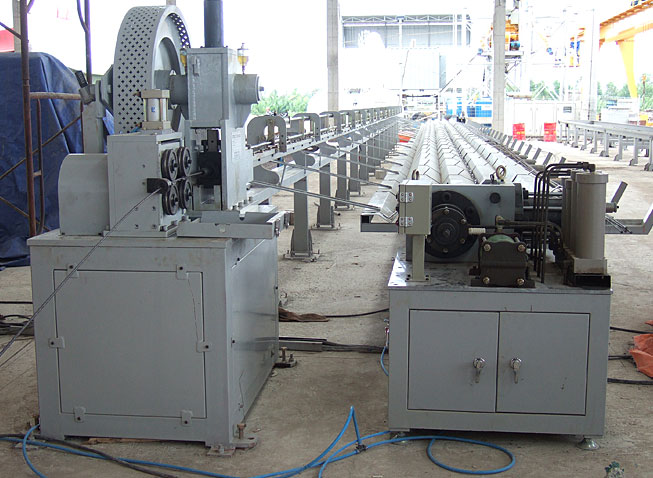

Automatic PC Bar Cutting machine is designed to cut PC Bars in designated length keeping cutting
accuracy at high speed.
The machine consists PC Bar Coil Stand(customer’s supply), feeding rollers (adjustable), cutting
mechanism controlled by belt-driven flywheel with air clutch, and PLC programmed control panel. |
| |
|
|
|
|
HSCT-100 |
|
|
 |
7.4~13mm dia. x designated length |
|
|
 |
+/- 1mm/10m |
|
|
|
15 tonF |
|
|
 |
6kg/cm2 |
|
|
|
|
|
 Note: Cutting Length and Discharge Direction must be informed when inquiring and ordering. |
|
|
|
|
|
